Selecting the right shrink method in shrink packaging can significantly impact bottom-line costs and operational efficiency. The difference between using a hand-held heat gun or a heat shrink tunnel like the TL-1606-20 can affect warehouse labor costs, material usage, and overall production effectiveness.

In this article, we compare heat shrink guns and the TL-1606-20 shrink tunnel to help you determine which option best suits your packaging needs. All details are based directly on the TL-1606-20 product specifications.

What is a heat gun?

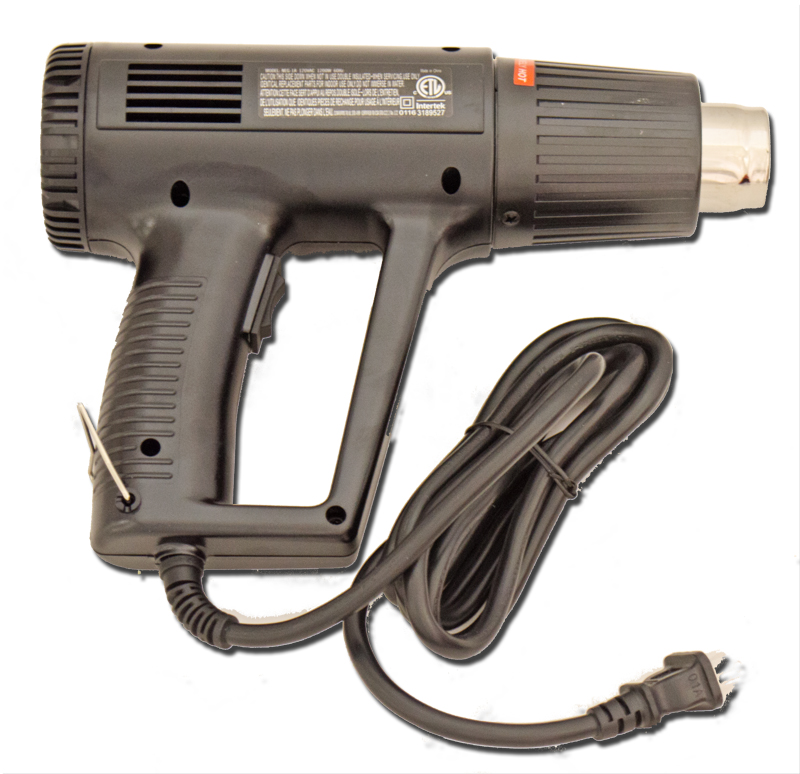

A heat gun (also called a heat shrink gun) is a handheld device that blows hot air. Models vary in speed control and temperature settings. Our 2-Speed Heat Shrink Gun offers two temperature settings (750°F and 1,100°F) plus high and low speed options. This 120-volt, 1200-watt tool works with PVC and polyolefin shrink film of various thicknesses and is recommended for shrink bags, rolls, or tubing. We also carry the Variable Temp Heat Shrink Gun with an adjustable dial ranging from 0 to 1,100°F. It delivers strong air velocity for precise wrapping at the exact heat setting needed. We only carry electric heat guns. If you are looking for a propane option, ShrinkFast heat guns are considered optimal.

Advantages of using a heat shrink gun

• Lowest-cost entry point for shrinking PVC and polyolefin film (prices typically range from $60 to $92).
• Highly portable — use anywhere with a standard outlet.
• Ideal for detailed, low-volume, or small-scale projects.
• Provides precise control over specific areas.
• Excellent for non-standard tasks or small repair jobs.

Disadvantages of a heat shrink gun

• Heat guns are not suitable for high-volume packaging. The process is slow and labor-intensive.
• Burn holes can appear if the gun is not kept in constant motion.
• The end of the Heat gun becomes hot and can burn skin if touched.
• Higher inconsistency and failure rates.
• Thicker materials can take several minutes to shrink per package

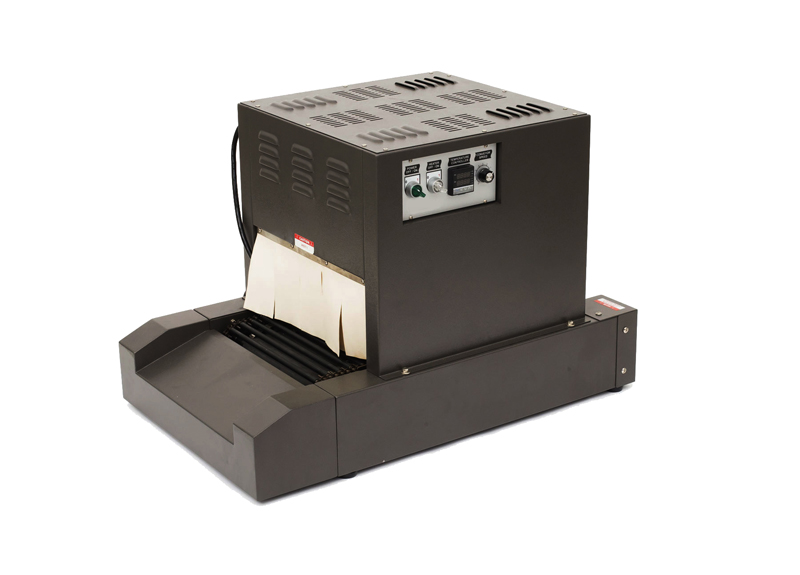

What is the TL-1606-20 shrink tunnel?
The TL-1606-20 (also listed as PP1606-20) is a compact, entry-level tabletop heat shrink tunnel with a 16" wide × 6" high × 20" long chamber. It features a heated chamber and conveyor belt that delivers uniform heat to shrink PVC, polyolefin, or polyethylene film. Available in 110V/115V (20 amp) or 220V configurations, the TL-1606-20-110v is perfect for lighter daily use, 4-8 hours daily, but for anything more than that, the TL-1606-20-220v is recommended. An optional leg kit with locking casters adds mobility and raises it to a comfortable working height.

Key features include:

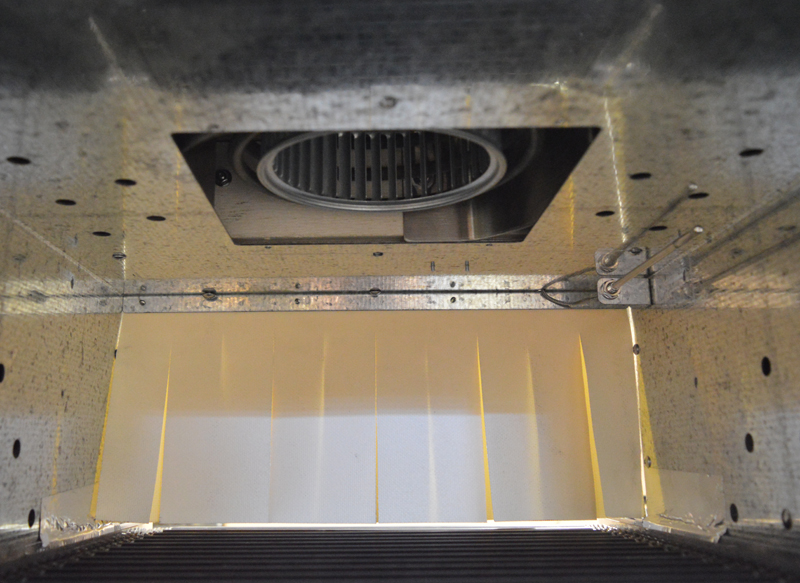

• Fully re-circulating air chamber with 4-direction air flow for the best possible shrink results.
• Live roller rod conveyor with high-density rollers and close ½" spacing between rods.
• State-of-the-art AC variable speed conveyor (0-30 FPM).
• Solid-state digital temperature control (0–400°F) with automatic cool-down and shut-off to extend heater life.
• Optional Teflon mesh belt kit for smaller items or heat-sensitive products.
• 12 ft power cord and 2-year warranty.
• Discharge slide on the exit end for easy package removal.

The small tabletop version weighs approximately 175–220 lbs (depending on configuration) and pairs perfectly with a tabletop sealer and has an optional leg kit with wheels and locking casters if needed.

Advantages of the TL-1606-20 heat shrink tunnel

• Delivers more consistent, professional shrinkage than a hand-held heat gun.
• Handles PVC and polyolefin shrink film with variable tunnel settings.
• Processes far more orders in less time, dramatically reducing labor.
• Extremely low maintenance (occasional chain lubrication).
• Reduces film waste through precise, uniform heating.
• Conveyor speed adjustment makes projects easier and faster to complete.
• Temperatures up to 400°F with digital control.
• Can be tailored to specific product dimensions and packaging requirements.
• Entry-level design ideal for multiple applications, including shrink bands, sleeves, and full wrap packages.

Disadvantages of the TL-1606-20 heat shrink tunnel

• Higher upfront cost than a heat gun (pricing starts around $2,500–$2,740, depending on voltage). A basic heat gun costs under $100.
• Heavier and less portable than heat guns.
• 220V models come bare wire and will require electrical assistance.
• Shrink Tunnels ship freight vs. parcel shipments.
• Possible initial odor during the break-in period.
• More moving parts.

Key Considerations: Heat Gun vs. TL-1606-20 Shrink Tunnel

When deciding between a hand-held heat shrink gun and the TL-1606-20 shrink tunnel, evaluate these factors:

• Production Volume: Higher volumes favor the TL-1606-20 tunnel for cost-effectiveness and efficiency. Low-volume or occasional use makes a heat gun more economical.
• Space Options: The compact tabletop TL-1606-20 takes up more room than a hand-held gun. A heat gun is better for very small shops.
• Budget: Factor in both equipment cost and long-term savings. The TL-1606-20 reduces labor and material waste, often paying for itself quickly in medium-volume operations.

Ready to upgrade your shrink packaging?
U.S. Packaging & Wrapping offers the TL-1606-20 shrink tunnel, optional leg kits, mesh belts, and a full range of high-quality shrink film and equipment. Visit our website at uspackagingandwrapping.com or contact us at 1-800-441-5090 or [email protected] for expert help choosing the right solution for your business.
