Heat Shrink Wrap Information
Shrink wrap is perfect for a variety of applications, from winterizing boats and massive structures to packaging small retail products. It is available in rolls, bags, and tubing. Understanding basic info about shrink wrap will ensure you purchase the right product. See the shrink wrapping guide below for product comparisons, details, videos, and more!

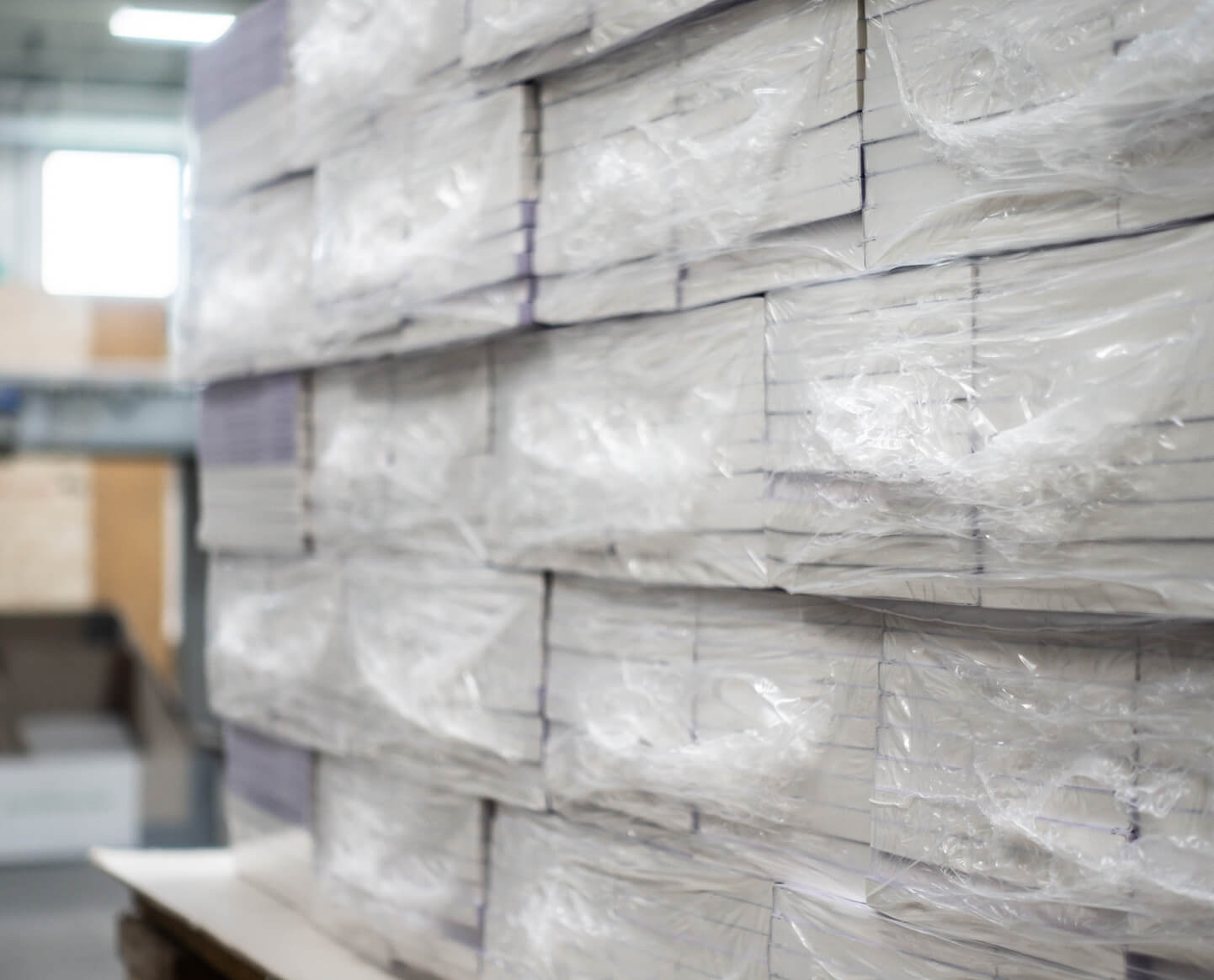

What is heat shrink wrap?
Often confused with stretch film, heat shrink wrap consists of a wide variety of plastic materials designed to shrink after heat is applied. Conventional plastics used are polyolefin, PVC, polyethylene, and polypropylene.
Heat shrink wrap is used as a packaging solution all around the world. Everything from wrapping frozen pizzas to bundling hardware. The proper film, material thicknesses, and machines can help make production more efficient and streamlined.
*Heat Shrink Wrap- a generic term that can refer to a variety of products serving multiple industries. Anything from centerfold shrink wrap, shrink tubing, shrink bags, or even marine shrink wrap rolls can be considered heat shrink wrap. Our stretch film products are often called shrink wrap by our customers. A 'pallet shrink wrap' is an entirely different product with different uses and applications.
Stretch film, commonly referred to as 'shrink wrap' is a stretchable plastic used to secure and unitize loads. It is also used to bundle multiple products together. Stretch film is considered secondary packaging during transportation or storage.
Differences Between Heat Shrink Wrap and Pallet Stretch Wrap
|High Stretch Rate Over 100%
|Used to Wrap Pallets
|Used to Wrap Retail Products
|Used to Wrap Industrial Products
|Safe for Direct Food Contact
||Polyolefin Shrink Wrap
|Most Common Thickness
|Ability to Extend Shelf Life
How Clear is Shrink Wrap?
Clarity is often a concern when using shrink wrap. For retail displays, people typically desire a film with high clarity. The high clarity allows consumers to view the product before making a purchase. The overall clarity of a shrink wrap film is decided by thickness and composition.
The thicker film has more haze than the thinner film. Different types of shrink film have different clarity levels as well. See the film clarity image below for a better understanding of shrink wrap clarity.
*Centerfold Heat Shrink Wrap- an excellent option for large and small output operations. Centerfold rolls come folded in half lengthways. If you were to order a 10" centerfold roll, it would be 20 inches wide when unfolded. The folded roll allows for quick and efficient packaging using fully automatic machines or manually operated shrink machines.
The fold crease enables users to quickly and easily place products into the crease and use an L-Bar sealer to seal and cut the shrink film in one motion. This makes for a quick and efficient packaging process refer to the video below to see how the product slips into the centerfold wrap. When deciding on centerfold shrink wrap, there are two primary options to choose from: Polyolefin and PVC shrink wrap.
Centerfold Shrink Wrap Differences
|Centerfold Wrap Type & Thickness
||Characteristics and Uses
|75 Gauge PVC Centerfold Shrink Wrap
||The most common thickness of PVC shrink film is used for a variety of products up to 10-15 lbs. in weight. PVC shrink wrap becomes hard and more brittle after heat is applied. Before heated, PVC shrink film feels like a cellophane film.
|100 Gauge PVC Centerfold Shrink Wrap
||The same feel and physical characteristics as the 75 gauge PVC shrink wrap, but stronger and more durable. Many manufacturers choose a 100 gauge PVC shrink wrap for products up to 35 lbs.
|60 Gauge Polyolefin Centerfold Shrink Wrap
||Polyolefin shrink wrap is softer to the touch and offers more puncture resistance than PVC shrink wrap. It is FDA-approved for direct food contact. The 60 gauge polyolefin shrink wrap is used for many lighter products and is often used by bakeries and other food producers.
|70 Gauge Polyolefin Centerfold Shrink Wrap
||It offers the same physical characteristics as the 60 gauge polyolefin shrink wrap, but stronger and more durable. The 75 gauge centerfold shrink wrap is the most popular centerfold shrink wrap we sell. It is versatile and capable of wrapping products up to 15-20 lbs.
|100 Gauge Polyolefin Centerfold Shrink Wrap
||The 100 gauge polyolefin shrink wrap is the most durable centerfold shrink wrap we stock. It offers better puncture resistance and durability than the 100 gauge PVC shrink wrap. We recommend it for products up to 35 lbs. depending on the edges and corners of the product.
Shrink Temperatures for Centerfold Shrink Film
*Centerfold PVC Heat Shrink Film- An excellent option for multiple products across multiple industries. PVC shrink film stands for Polyvinyl Chloride. PVC is one of the most used polymers in the world.
Centerfold PVC shrink works great with high-speed machines as well as manually operated machines. Available in a variety of widths and lengths. It is an ideal option for cost-effective packaging. It ranges in cost from approximately 2.9 cents per foot to 8 cents per foot, depending on the width of the film you choose. Here is an excellent article for PVC shrink wrap cost per foot. This cost advantage, simplicity of use, and versatility make PVC shrink film perfect for packaging a variety of products.
We do recommend proper ventilation when sealing and applying heat to any PVC heat shrink product. The Chloride in the polymer emits a strong odor that can be harmful when continually inhaled in a confined area. PVC heat shrink wrap cannot come into direct contact with food products.
*Centerfold Polyolefin Heat Shrink Film- has become the chosen shrink film in many industries around the world. Polyolefin offers many advantages over PVC shrink film but costs more per foot. The cost is justified in the performance and versatility of the material.
Polyolefin shrink film can come into direct contact with consumable products and offers better clarity and less residue on sealing wires. Due to the absence of Chloride, polyolefin does not emit the same odor PVC shrink film does.
Newer lower temperature polyolefin shrink film allows users to wrap heat-sensitive products with less heat exposure. Low temperature shrink wrap begins to shrink at 250 - 270 degrees Fahrenheit. It is FDA-approved for direct food contact. A perfect option for shrink wrapping chocolates, fudge, and other heat-sensitive products.
*Shrink Wrap Bags- Flat, domed, and pallet shrink bags are available. The flat bags are chosen for books, magazines, parts, jewelry, cosmetics, and more. They are an efficient means of packaging, because of the low temperature required, as well as the ability to only seal one side of the bag.
Our polyolefin shrink bags are FDA approved and food safe for a variety of consumable and non-consumable packaging applications. Candy makers, bakeries, and gift shops all use polyolefin shrink bags for packaging and protecting products.
The domed shrink bags or gift basket shrink bags come in larger sizes and are commonly used by florists and craft companies for wrapping gifts and flower baskets.
Pallet shrink bags protect pallet loads from exposure to a variety of external conditions. All pallet shrink bags are made from polyethylene shrink wrap. Large industrial heat guns are commonly used to apply heat for shrinking.
Popular Shrink Bag Sizes
- 6" x 7" = CD's
- 6" x 9" = DVD's
- 8" x 12" = Books and Magazines
- 12" x 16" = Mailers and Tablets
*Shrink Tubing- is a great option for packaging a variety of products of the same circumference, but different in length. A common product that uses heat shrink tubing is candles. We have several customers that are candle makers, who make candles of the same diameter, but different lengths. We also sell several shrink tubing rolls to companies that wrap electrical wires. The heat tubing is great for bundling multiple electrical wires together.
Recycling shrink wrap when possible is essential for any warehouse to consider. Recycling can help produce a new film that can be used over and over. Click on the link for a complete list of plastic film recycling drop-off points. Be sure to call any location you find on the list and ask if they recycle the specific shrink film you are using.
Shrink Wrap Videos
The use and application of shrink wrap film can vary depending on the type of material used. Although different materials can require various forms of application, the basic requirements remain the same. The product being wrapped needs to be inserted into the shrink film, open ends to be sealed, and heat to be applied to the film. In some instances, opens ends do not require a seal. View some of the videos below to see how to use shrink wrap for packaging food, retail, and industrial products.
Shrink Wrap Terms
Angel Hair- Thin strands of shrink film on the edges next to the seal can be caused by a variety of issues.
Biaxially Oriented Shrink Film- The shrinking of the film in two directions to produce molecule alignment enhancing physical properties.
Ballooning- Trapped air in a shrink wrapped package causing the film to expand outward.
Burn Holes- Small holes often close to seal seams due to excessive heat applied to the shrink film.
Centerfold Shrink Film- Film that has been folded in half lengthways to make wrapping more comfortable and quicker.
Core- The inner cardboard core of a roll of shrink film. The industry-standard core size is three inches.
Cross Linked- The cross-linking of polymers reduces the level of crystallization and results in a lowered hardness, better clarity, and higher yield strength.
Crow's Feet- Wrinkles diverging out from a finished package's corners.
Dog Ears- Triangular projections of unshrunk film at the corners of complete packages. Common in packages wrapped with PVC shrink wrap.
Fish Eyes- Round or oval-shaped patterns on a shrink film due to low heat. Increased heat will decrease fish eyes and smooth out the film.
Gauge- A measurement used to describe film thickness. One gauge is equal to .254 Microns. View our gauge conversion chart for further clarification.
Haze- Directly relates to a shrink film's clarity. It is often described as a cloudy look to the film.
Memory- The ability of a shrink film to maintain final characteristics after sealing. Packages will remain tight and not loosen during transport.
Optics- The visual properties of a shrink or stretch film.
Polyethylene- The most common plastic in the world. Found in multiple forms and products around the world. Polyethylene is used for pipelines and trash cans, as well as flexible plastic products like shrink film and trash bags. Polyethylene shrink film is often a thick film for heavy or sharp objects.
Polyolefin- is a polymer produced from a simple olefin (also called an alkene with the general formula CnH2n) as a monomer. Shrink film made from this is called a POF shrink film.
PVC- Polyvinyl Chloride, a thermoplastic polymer that is the third most-produced plastic in the world. PVC shrink film is a universal shrink wrap used for various applications.
Seal Seam- The mended line of a shrink wrapped package where two ends are attached.
Shrink Bags- A shrinkable bag with three enclosed sides. A shrink bag enables users to easily slide a product into the bags and seal the one open end.
Shrink Tubing- A continuous tube placed on a roll with two enclosed sides. Shrink tubing allows users to wrap and seal longer products.
Shrink Rate- The amount of shrinkage a film can obtain often measured in percentage.
Single Wound- Flexible film rolled flat onto a core. Single wound shrink film is used with bundling machines for packaging cases of products.
Tear Resistance- The ability of a film to resist tear. Using a shrink film with a higher tear resistance is important when wrapping heavy products or products with sharp edges.
Vent Holes- Tiny holes placed in shrink film allowing air to escape from sealed packages to prevent ballooning.
