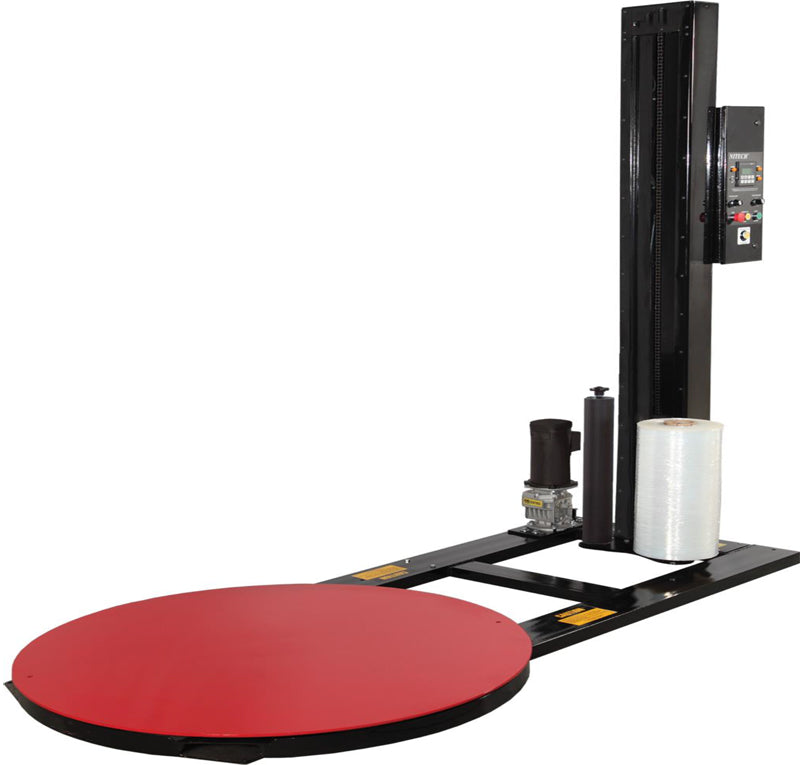

Low Profile Turntable Pallet Wrapper
Product Weight: 1200.0 lb

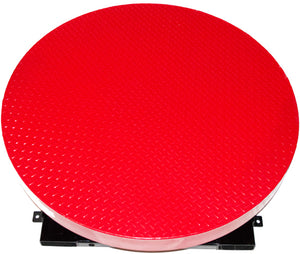

The American-made 77205 low-profile pallet wrapper features touch screen controls and a fully enclosed 3/4 horsepower motor to wrap pallets up to 5,000 pounds. The sixty-inch turntable can accommodate pallets up to 56"x56".
The formed all-steel tower can fit pallets up to 80 inches tall. Depending on the pallet size, the variable speed film carriage can wrap up to 40 loads per hour. An adjustable film brake can be increased for up to a 150% stretch rate.
Wrap pallet and skid loads quickly and efficiently, increase productivity and reduce worker fatigue. Once the pallet is loaded onto the wrapper, workers press a button and allow the machine to do the rest. After the cycle is finished and the products are wrapped, the turntable returns to the home position for quick unloading.
Machine Specifications
| Power | 120Vac/60Hz/20 Amps |
| Turntable Speed | 15 RPM |
| Load Sensor | Automatic load height sensor |

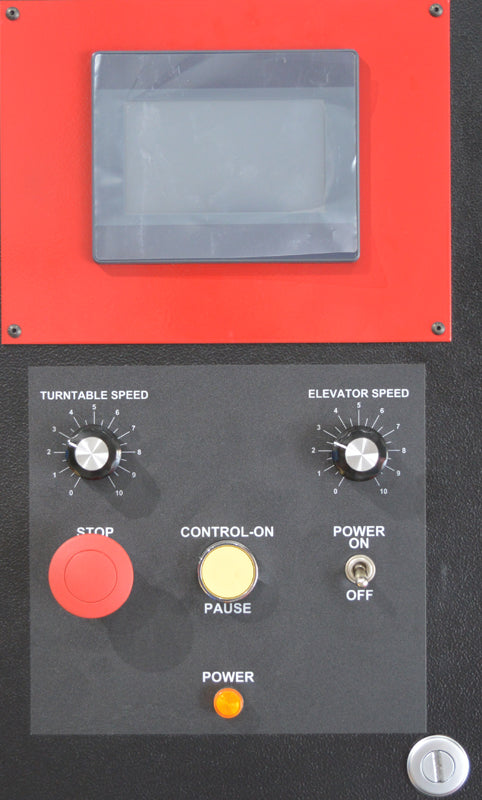

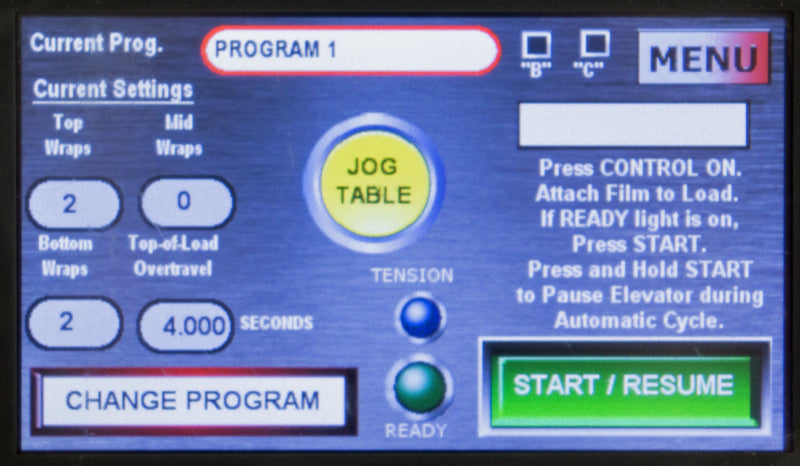

| Control Panel | Touchscreen Panel |

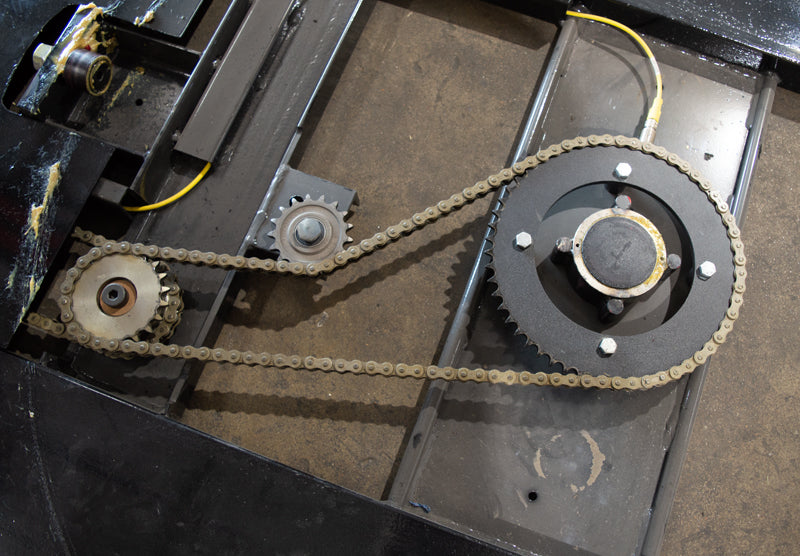

| Turntable Drive | Chain |
| Max Stretch Rate | 250% |
| Warranty | 4 Year Manufacturer’s Warranty on Parts |
| Ramp | Not Included* |
| Turntable Diameter | 60” |
| Turntable Diagonal | 92” |
| Turntable Height | 3.625” |
| Mast height | 94” |
| Max Load Weight | 5,000 lbs. |
| Min. Load Height | 22” |
| Max load Height | 80” |
| Max Stretch Film Width | 20”* |

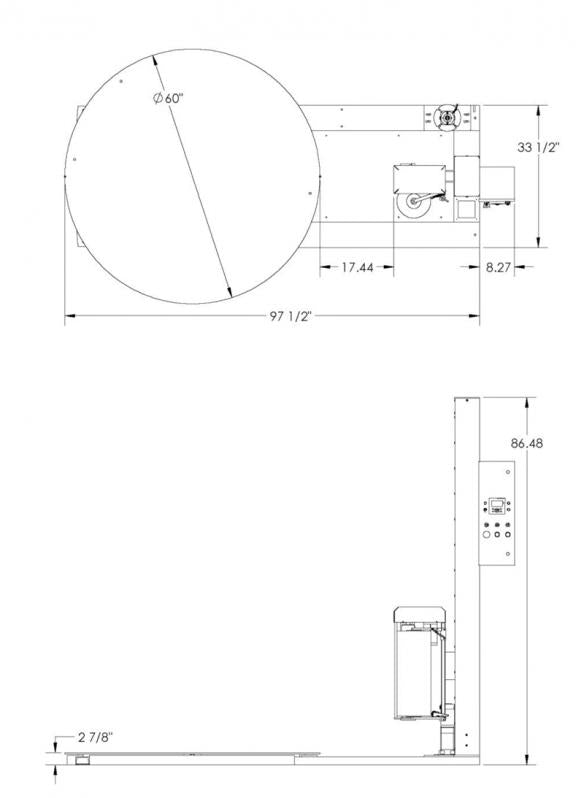

| Machine Dimensions | 111”L x 60”W x 86”H |
| Machine Weight | 1,100 lbs. |
Shipping Dimensions
| Weight | 1,240 lbs. |
| Skid Dimensions | 127”x64”x92” |
| Freight Class | 150 |
* Denotes Optional Sizes Available Call For Details
