Shrink Bundling Machine

Name: Shrink Bundling Machine
Brand: USPW
SKU: HS-SW3614
Price: 28020.45 USD
Availability: InStock

SKU: HS-SW3614

$28,020.45

Shipping calculated at checkout.

Call 1-800-441-5090 for a shipping quote

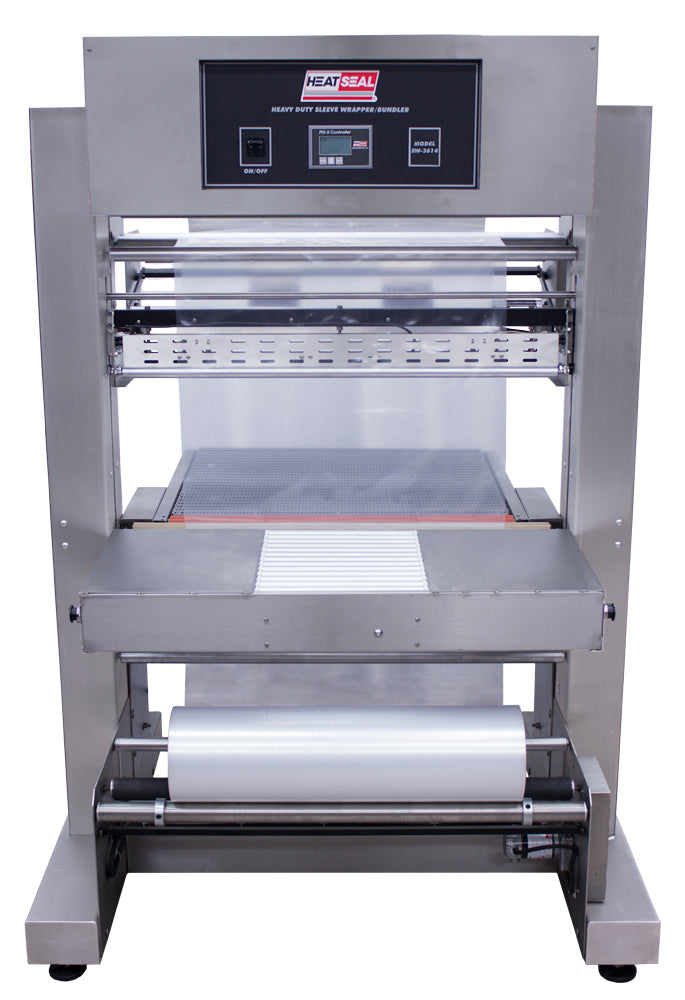

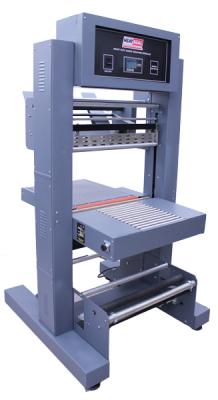

The American made SW3614 shrink bundler is made to wrap heavier products for transportation and storage. The 36” wide by 14” tall sealer is perfect for cases of water, carbonated beverages, canned food, and more. All bundlers come with a heavy duty hot knife made for high production sealing.

Machines feature a two-button air operated sealing bar. The sealing bar is held with adjustable magnets and released when the seal is complete.

Locking casters and adjustable levelers allow easy mobility throughout the warehouse. The powered exit conveyor transports products from sealer to a tunnel after the seal is complete.

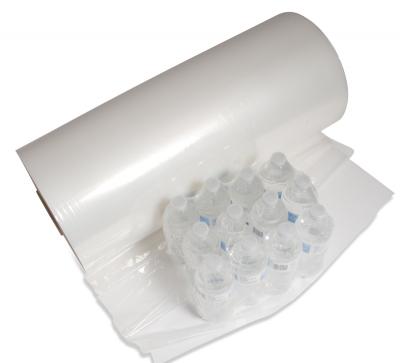

Users are capable of packaging hundreds of products hourly. The semi-auto shrink bundler can be used with shrink bundling film up to 8 mils thick. View machine specs and details below.

Machine Highlights

Seal Bar Width	36 Inches
Seal Bar Height	14 Inches
Maximum Seal Width	34.5 Inches
Maximum Seal Height	13 Inches
Machine Dimensions	48”Wx40”Lx77”H
Table and Conveyor Height	35 Inches
Power Requirements	115 Volts, 15 Amps, Single Phase
Air Requirements	1-2 cu. Ft per minute @ 80 psi
Machine weight	560 Lbs.

* Shrink Bundler is the sealer only. A shrink bundling tunnel is strongly recommended.
