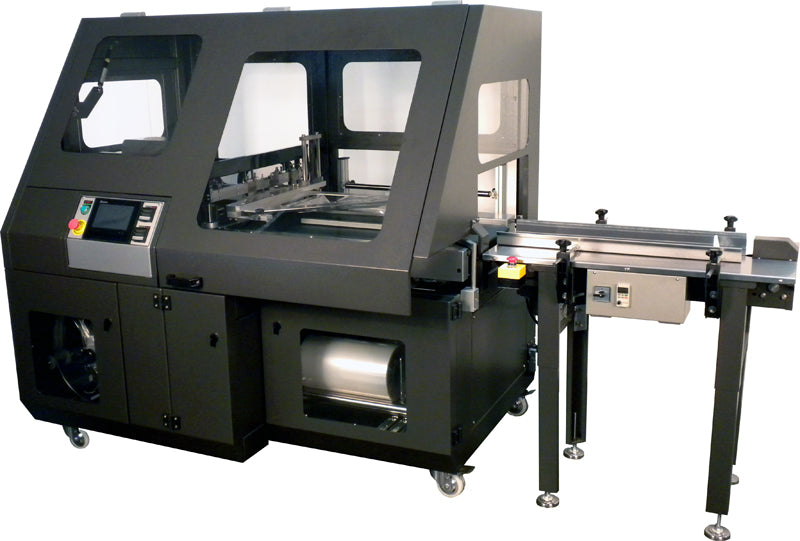

Automatic L Bar Sealer
Call 1-800-441-5090 for a shipping quote

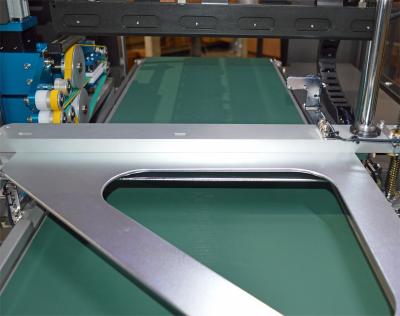

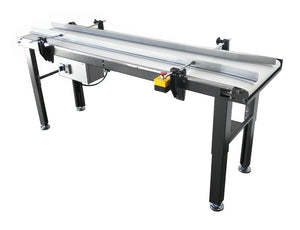

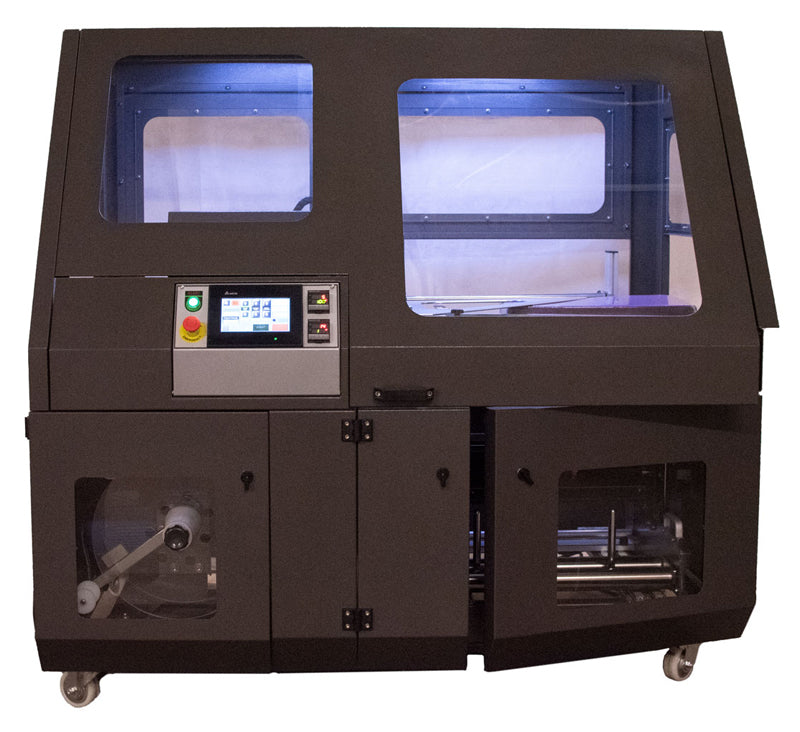

The 5600 automatic L bar sealer is made to package thousands of products per hour. An Infeed conveyor feeds products through the sealer. As products pass vertical and horizontal photo-eyes, the pneumatic sealing bar closes to encase products within shrink film. The 5600 is designed for use with polyolefin centerfold shrink film. The hot knife sealing blade will last for years with proper cleaning and maintenance.

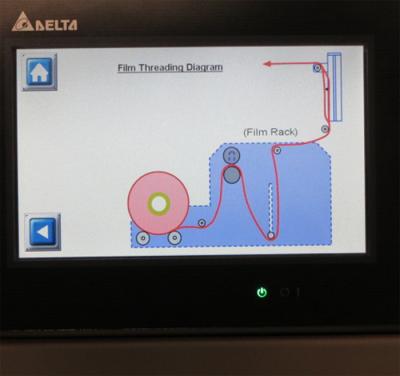

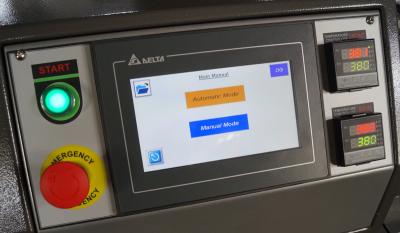

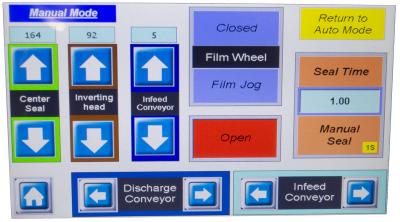

The touchscreen display makes adjustments quick and easy. With the touch of a button, product height and width changes can be made. With 30 preset products, operators simply press the preset size to adjust the machine accordingly. Fast changes reduce downtime and ensure the same package time after time.

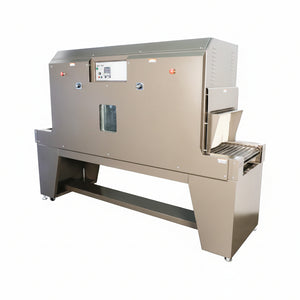

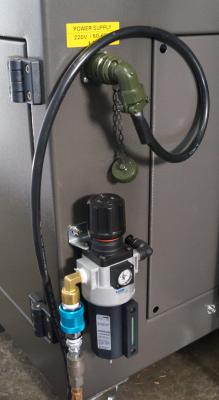

A single-phase 220v/208v power supply is needed with an 80 psi air supply to operate the sealing bar. Products up to twenty-four inches long and nineteen inches wide can be run with the sealer. Production times of 35 products per minute can be achieved with optimal product size and settings. Larger products can be sealed easily at 20-25 products per minute. After the seal is complete, products exit the sealer via conveyor and move into a shrink tunnel.
See the machine specifications, size, and requirements below.
Features
| 25"Lx20"Wx8"H Bar Sealer |
| Vertical Auto L Seal Bar |
| Vertical and Horizontal Photo-Eye |

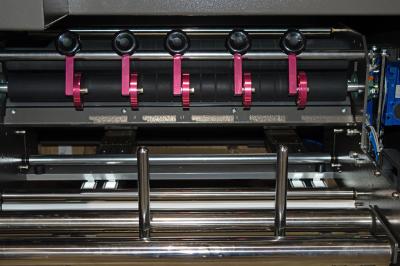

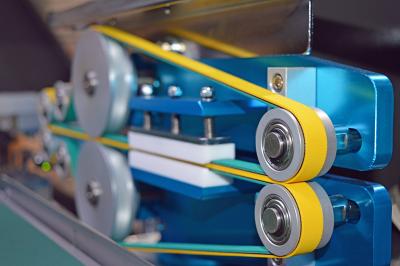

| Easy Pinwheel Perforating Adjustments |
| Hot Knife Seal Technology |
| Delta Touchscreen Controls |
| Store 30 Product Sizes |
| Scrap Feed Unwind |
| Quick Sync Infeed Conveyor Option |
| Heavy-Duty Locking Casters |
| 1 Year Warranty on all non-wearable parts |
| 69" Lx51" Wx67"H Machine Dimensions |
| 220v Single Phase, 15 amp |
| 3 CFM @ 80 PS |
Product testing is required before machines can be purchased. We always try to keep a fully automatic L bar sealer on the floor for product testing. Call us at 1-800-441-5090 to discuss your needs today.
