24" I Bar Shrink Wrap System

SKU: HI-AIE-2024-24PVC

$517.25

Shipping calculated at checkout.

Ships within: 24 Hours

Shrink Film Roll Included: 22"x500'x75 ga. PVC

22"x500'x75 ga. PVC 22"x500'x75 ga. POF

The wide and versatile 24-inch I-bar shrink wrap system can package book stacks, picture frames, or even smaller cosmetic products. The large shrink system is recommended for products up to 23.5 inches wide. Each system includes a 22-inch-wide roll of either PVC or Polyolefin shrink film. The polyolefin shrink film softens when heat is applied and is required for any direct food contact.

The PVC film shrinks at lower temperatures and provides a strong, durable package for retail and industrial applications. Visit our shrink wrap reference library to learn about shrink wrapping differences.

System Highlights:

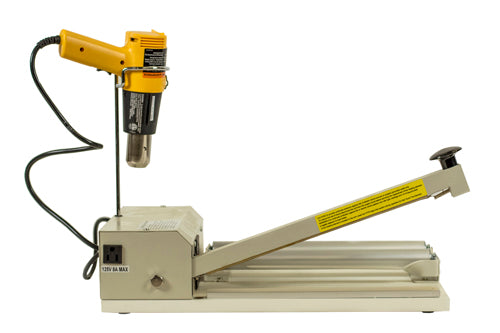

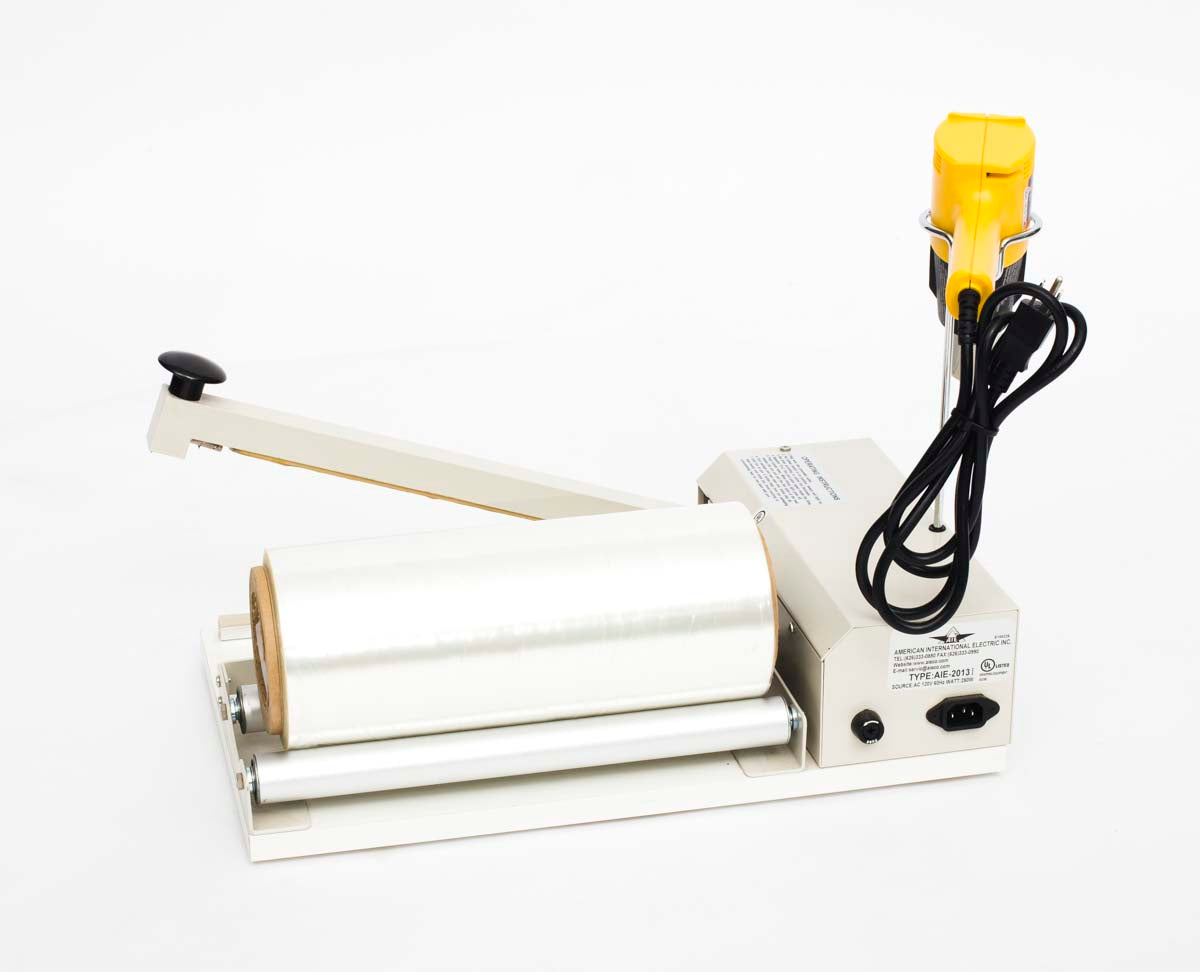

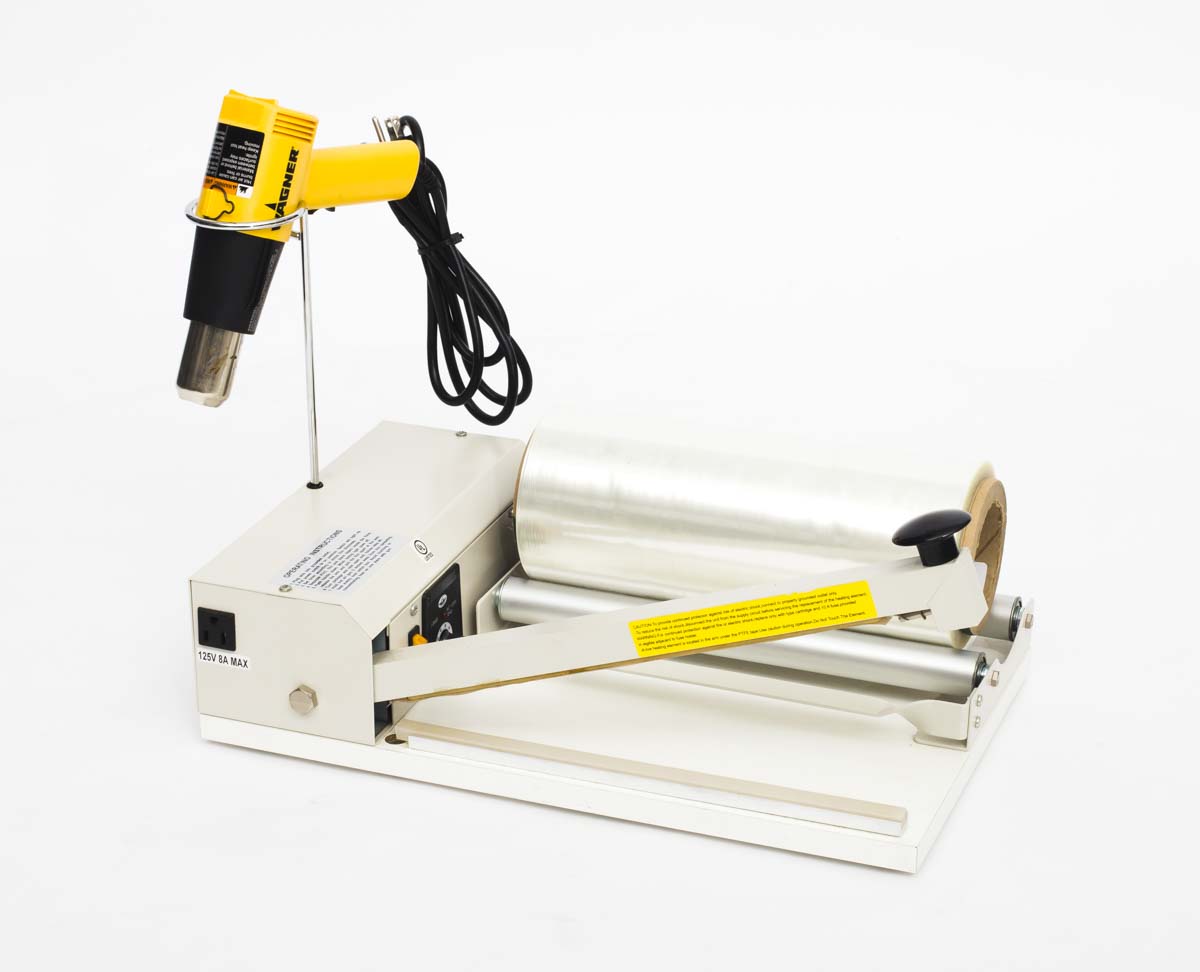

Complete Shrink Wrapping System – Shrink Wrap, Film Rack, Sealer, Heat Gun
Standard 120v Plug
Replacement Wire Kit included
Option of 22” PVC or Polyolefin Shrink Wrap
Parts Always Available
Portable Shrink Wrap System

After all the items are removed from the box, place the shrink film roll on the film rack. The material is a centerfold and will need to be opened with the top layer on top of the film separator and the bottom layer below the separator bar. Plug in the machine, pull the film from the rack, and make the first seal without inserting any product into the wrap. After a good initial seal, insert items into the shrink wrap and seal the back side of the product, leaving approximately one-half inch of space between the seal and the edge of the product.

Once that seal is complete, rotate the product and make the final seal. After the open sides are sealed, plug the sealer into the plug found on the machine and begin on the low setting approximately 6-10 inches from the shrink wrap. Keep the gun moving, never holding it in one place. The finished product should be free of holes and concealed within the shrink film.

Each system comes with a replacement seal wire kit. This system is not recommended for any shrink material thicker than two mils. Replacement parts and service are available with the purchase of a machine from U.S. Packaging & Wrapping.
